Paddle Agitator
Paddle Agitator

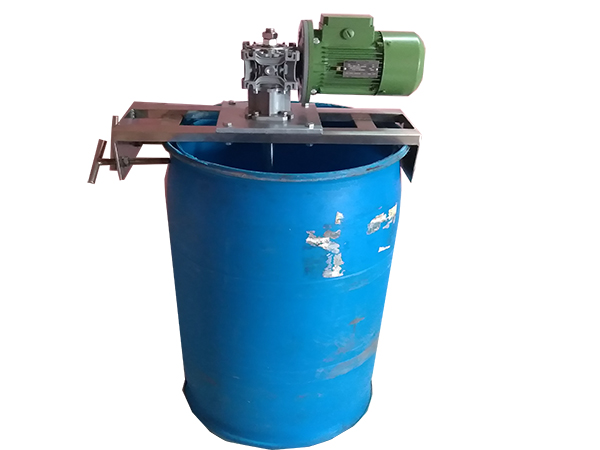

Drum Stirrer is ideal for drum mixing when the contents must be thoroughly mixed before they can be pumped out. The propeller diameter of conventional stirrers are too big to be inserted through a bung opening which forces the user to opt for either manual stirring or cut open the barrel to enable the conventional stirrer to be inserted, which makes it cumbersome and time consuming. Drum Stirrers, a light, portable and continuous duty rated allows quick blending without removing the drum lid. The Drum Stirrer Assembly incorporates a threaded stainless steel nipple to allow mounting on the opening of drums. Our unique design with foldable propeller with detachable drive motor allows for simple drum stirring.
Product Introduction
Artisan inline homogenizer is a high shear mixer for the manufacturing of viscous paste, cream, lotion and other emulsions in the pharmaceutical, cosmetic, food and chemical industries. It’s a vacuum emulsifier mixer and it is suitable for continuous mixing.| Model | Motor Power (HP) | Speed (RPM) | Flow Rate By Water (m³/h) | Inlet/Outlet (TC) |
|---|---|---|---|---|
| SH-1 | 1 | 2880 | 1 | 1.25/1 |
| SH-2 | 2 | 2880 | 1.5 | 1.25/1 |
| SH-3 | 3 | 2880 | 3 | 1.5/1.25 |
| SH-5 | 5 | 2880 | 5 | 2/1.5 |
Drum Mixer Features
● Flow rate by water from 1.5m³/h to 30m³/h. ● Complete process of dispersing, high shearing, emulsifying and homogenizing. ● Suitable for making cream, lotion, ointment and other emulsions of 5,000~100,000cps viscosity. ● Suitable for continuous mixing process of large quantity with high efficiency. ● High shear inline mixer with circulation pipes to the mixing tank for even homogenization. ● Products can’t bypass the precision rotor and stator work head. ● The self-pumping in line high homogenizer also works as a transfer pump for discharging the finished product. ● Required cooling system for the mechanic seal for long high shear mixing time. ● Work with different manufacturing vessels. ● All Artisan Inline Homogenizer mixers are designed for CIP and SIP. ● All contact parts are made of SS316L/316/304. ● Sanitary clamp connections for inlet and outlet ports. ● The specifications of the inline continuous mixer comply with cGMP regulations. ● Power supply of 415V, 50Hz, 3 Phase.
Drum Mixer Options
● Interchangeable work heads and screens of slotted and holed designs. ● Portable inline mixer with castor wheels and handle. ● Feeding hopper for adding powders and liquids. ● Different combinations of inline high shear mixer, agitator, high speed disperser and batch mixer for different processes. ● Control panel with frequency inverter for adjusting mixing speed. ● Different power supply acceptable. .
